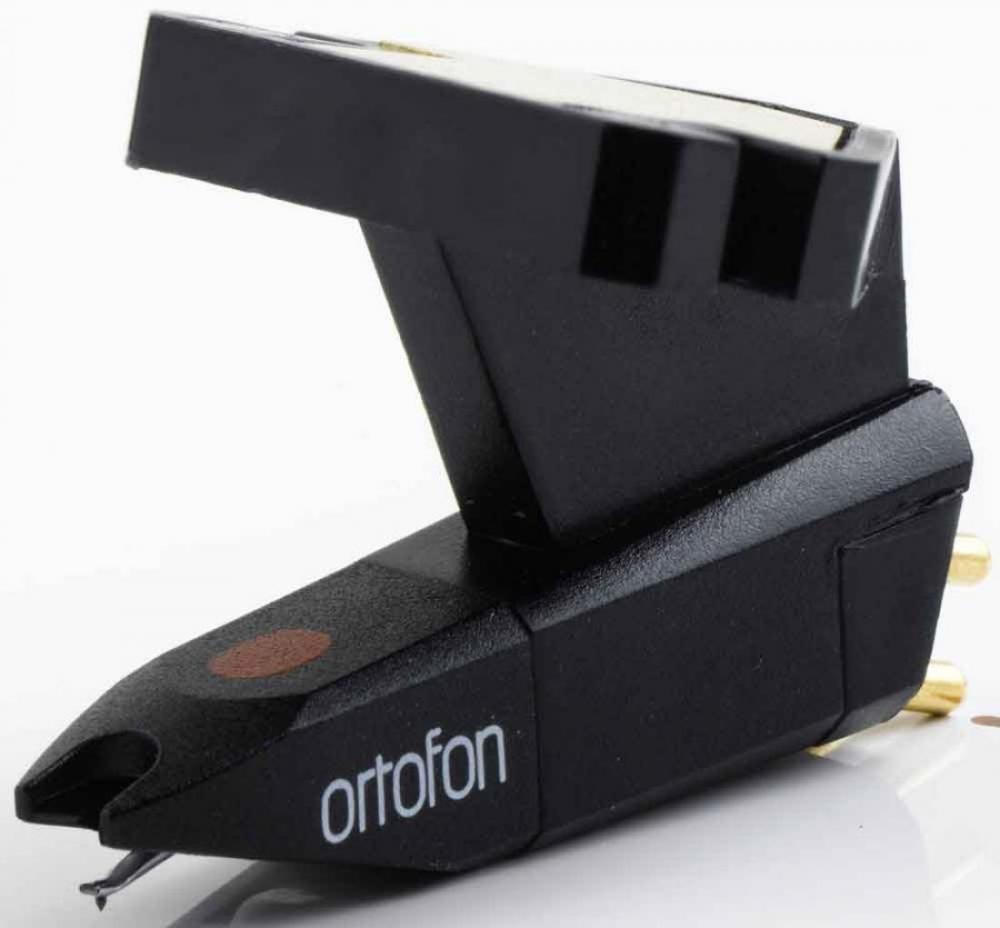

Ortofon OM 5S äänirasia

Ortofon OM 5S MM äänirasia

Pyöreällä timanttineulalla toteutettu alkaen hintaluokan äänirasia.
Output voltage at 1000 Hz, 5cm/sec.       -  4.5 mV
Channel balance at 1 kHz       -  2 dB
Channel separation at 1 kHz       -  20 dB
Channel separation at 15 kHz       -  12 dB
Frequency range at - 3dB       -  20-20.000 Hz
Frequency response       -  20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force *)       -  60 µm
Compliance, dynamic, lateral       -  20 µm/mN
Stylus type       -  Spherical
Stylus tip radius       -  R 18 µm
Tracking force range       -  1.5-2.0 g (15-20 mN)
Tracking force, recommended       -  1.75 g (17.5 mN)
Tracking angle       -  20°
*) Typical value
Internal impedance, DC resistance       - 750 Ohm
Internal inductance       -  450 mH
Recommended load resistance       -  47 kOhm
Recommended load capacitance       -  200-500 pF
Cartridge colour, body/stylus       -  Black/Black
Cartridge weight incl. extra weight      -  5 g
Cartridge weight excl. extra weight      -  2.5 g
Replacement stylus unit       -  Stylus 5S
