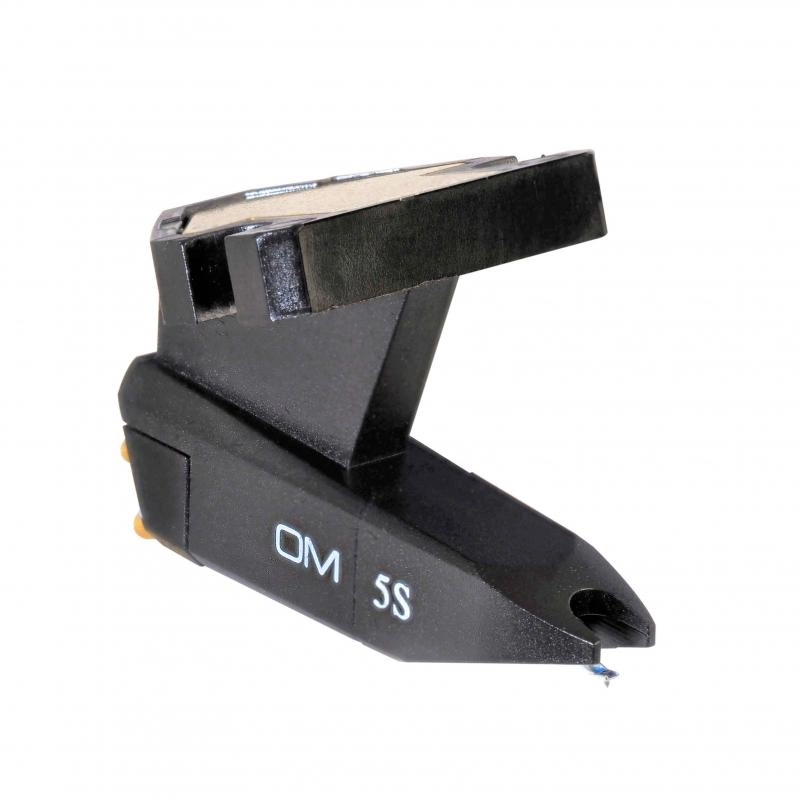

Pyöreällä timanttineulalla toteutettu alkaen hintaluokan äänirasia. Output voltage at 1000 Hz, 5cm/sec. - 4.5 mV Channel balance at 1 kHz - 2 dB Channel separation at 1 kHz - 20 dB Channel separation at 15 kHz - 12 dB Frequency range at - 3dB - 20-20.000 Hz Frequency response - 20-22.000 Hz Tracking ability at 315Hz at recommended tracking force *) - 60 µm Compliance, dynamic, lateral - 20 µm/mN Stylus type - Spherical Stylus tip radius - R 18 µm Tracking force range - 1.5-2.0 g (15-20 mN) Tracking force, recommended - 1.75 g (17.5 mN) Tracking angle - 20° *) Typical value Internal impedance, DC resistance - 750 Ohm Internal inductance - 450 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 200-500 pF Cartridge colour, body/stylus - Black/Black Cartridge weight incl. extra weight - 5 g Cartridge weight excl. extra weight - 2.5 g Replacement stylus unit - Stylus 5S
