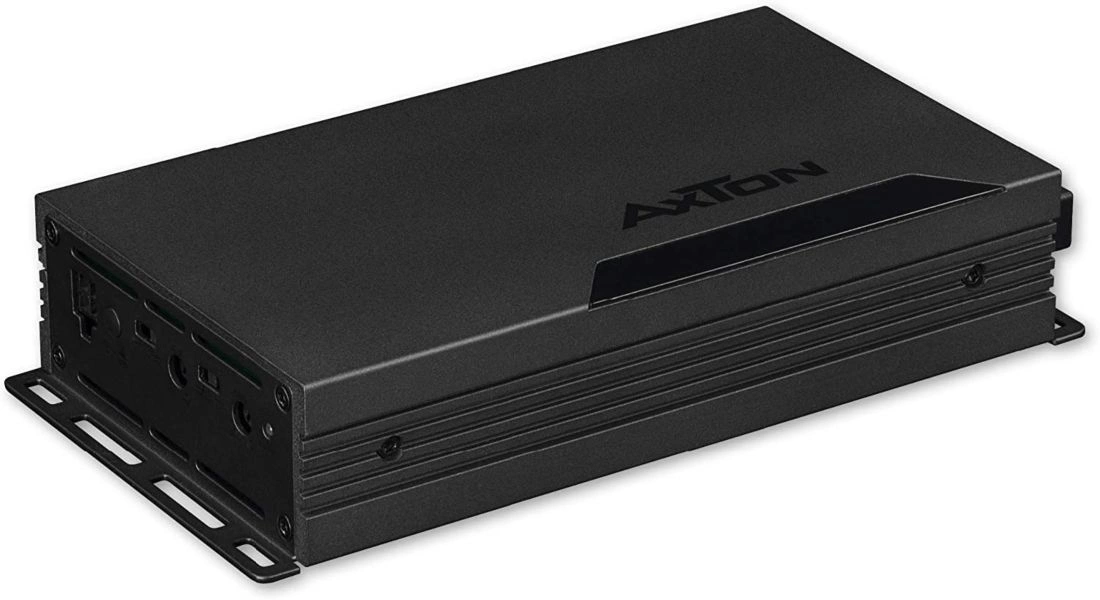

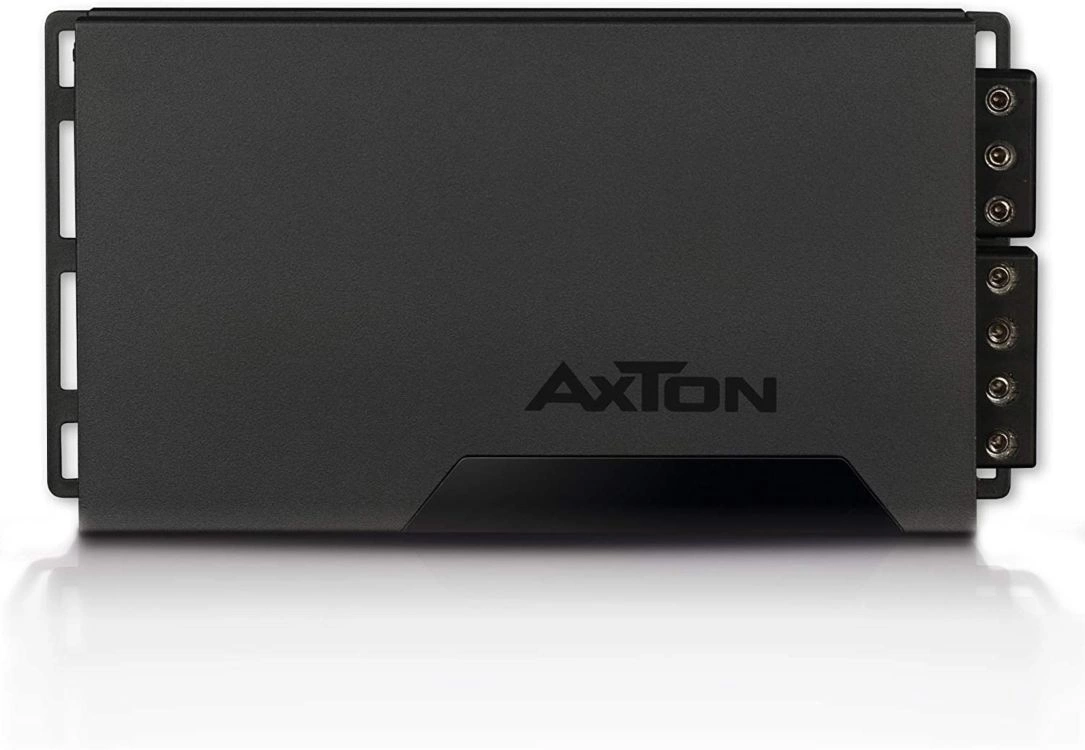

AXTON A201 2-channel amplifier

For those who want to upgrade their music system with a compact but powerful quality amplifier, car audio specialist AXTON has the 2-channel power amplifier A201 in the program: Minimal 10.5 cm wide and 4 cm high, this amplifier with 2 x 150 watts offers a lot of power in the smallest space. Thanks to the compact dimensions, the Class D amp can be flexibly installed in the car, motor home or caravan. The elegant, black aluminum housing is first-class processed and thoughtfully designed: Despite the compact dimensions, the massive heat sink conducts the heat specifically to the outside and thus ensures an optimal operating temperature throughout. The amplifier circuitry is designed with care, the design of the board layout is optimized for low distortion and equipped exclusively with selected components. Due to the sophisticated interaction of all components, this high-quality amplifier plays at the highest level: The A201 reproduces every piece of music with transparency, gripping dynamics and, above all, genuine joy of playing. The integrated electronic crossovers, each with 12 dB/oct. slope, are continuously adjustable from 40 - 400 Hz and can be switched as high-pass or low-pass filters. In addition, there are high-level inputs with auto-turn-on function for connection to original radios without RCA output.

Highlights:

Ultra-compact Class-D amplifier

Aluminum heat sink for optimal heat dissipation

12 dB/oct. high-pass and low-pass filter (40 - 400 Hz)

High-level/low-level input

Auto-turn-on via DC offset or music signal

Fully suitable for vehicles with automatic start/stop system

Spesifications:

Output power @ 4 Ohm 2 x 150 W

Output power @ 2 Ohm 2 x 260 W

Output power @ 4 Ohm bridged 1 x 500 W

Frequency response 15 Hz – 35 kHz

Integrated electronic crossovers 12 dB/oct. high and low pass filter (40 - 400 Hz)

Signal-to-noise ratio 88 dB

Variable input sensitivity 0.4 – 10 V

Dimensions (W x H x D) 205 x 40 x 105 mm
